Rain Bird 3500 CP 3504 PC Pop-Up Rotor Sprinkler, 1/2 in Connection, FNPT, 4 in H Pop-Up, 15 to 35 ft, Adjustable Nozzle

Rain Bird

Rain Bird 3500 CP 3504 PC Pop-Up Rotor Sprinkler, 1/2 in Connection, FNPT, 4 in H Pop-Up, 15 to 35 ft, Adjustable Nozzle

Rain Bird 3500 CP 3504 PC Pop-Up Rotor Sprinkler, 1/2 in Connection, FNPT, 4 in H Pop-Up, 15 to 35 ft, Adjustable Nozzle
  • Color: Black
  • Connection Size: 1/2 in
  • Connection Type: FNPT
  • Dimensions: 6.6 in H x 2.2 in W x 2.2 in D
  • Flow Rate: 0.54 to 4.6 gpm
  • Model #: CP 3504 PC
  • UPC #: 077985026660
  • SKU: 1378355

Your shopping list will be used for pickup in-store

Product Details

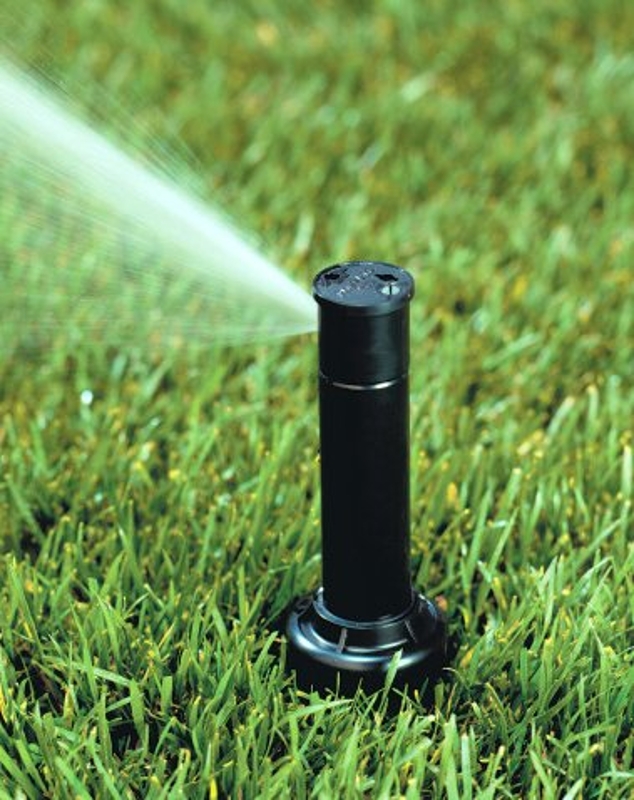

Compact residential rotor. Big on value and convenience. The 3500 series rotor is an easy to use short to mid-range 1/2 in gear drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy. This versatile rotor offers an attachable nozzle tree with six superior performing rain curtain nozzles, and the convenience of reversing full- and part-circle operation (up to 360 deg) in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze. All of this, an affordable price, and a three-year factory warranty make the 3500 series one rotor that is easy to use, easy to buy, and tough to beat.

Key Features

  • Rain curtain nozzles deliver even distribution over the entire radius including large wind-resistant droplets and gentle close-in watering resulting in greener turf using less water
  • Oversized wiper seal prevents leaks and protects internals from debris
  • Arc adjustment through the top of the rotor requiring only a flat blade screwdriver
  • Water-lubricated gear-drive design for durable, reliable operation
  • 40 to 360 deg part-circle arc rotation and reversing full-circle rotation in one
  • Optimized for short to mid-range distances
  • Quick check arc/fast forward
  • Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
  • Easily removable filter screen for maintenance purposes
  • Arc setting factory preset at 180 deg for installation convenience

Item Specifications

ColorBlack
Connection Size1/2 in
Connection TypeFNPT
Dimensions6.6 in H x 2.2 in W x 2.2 in D
Flow Rate0.54 to 4.6 gpm
Full-Circle/Part-CirclePart-Circle
MaterialPlastic
Nozzle Trajectory25 deg
Nozzle TypeAdjustable
Operating Range15 to 35 ft
Pop-Up Height4 in
Precipitation Rate0.37 to 0.83 in/hr
Pressure Rating25 to 55 psi
MORE DETAILS:
  • Warranty: 3 Years
